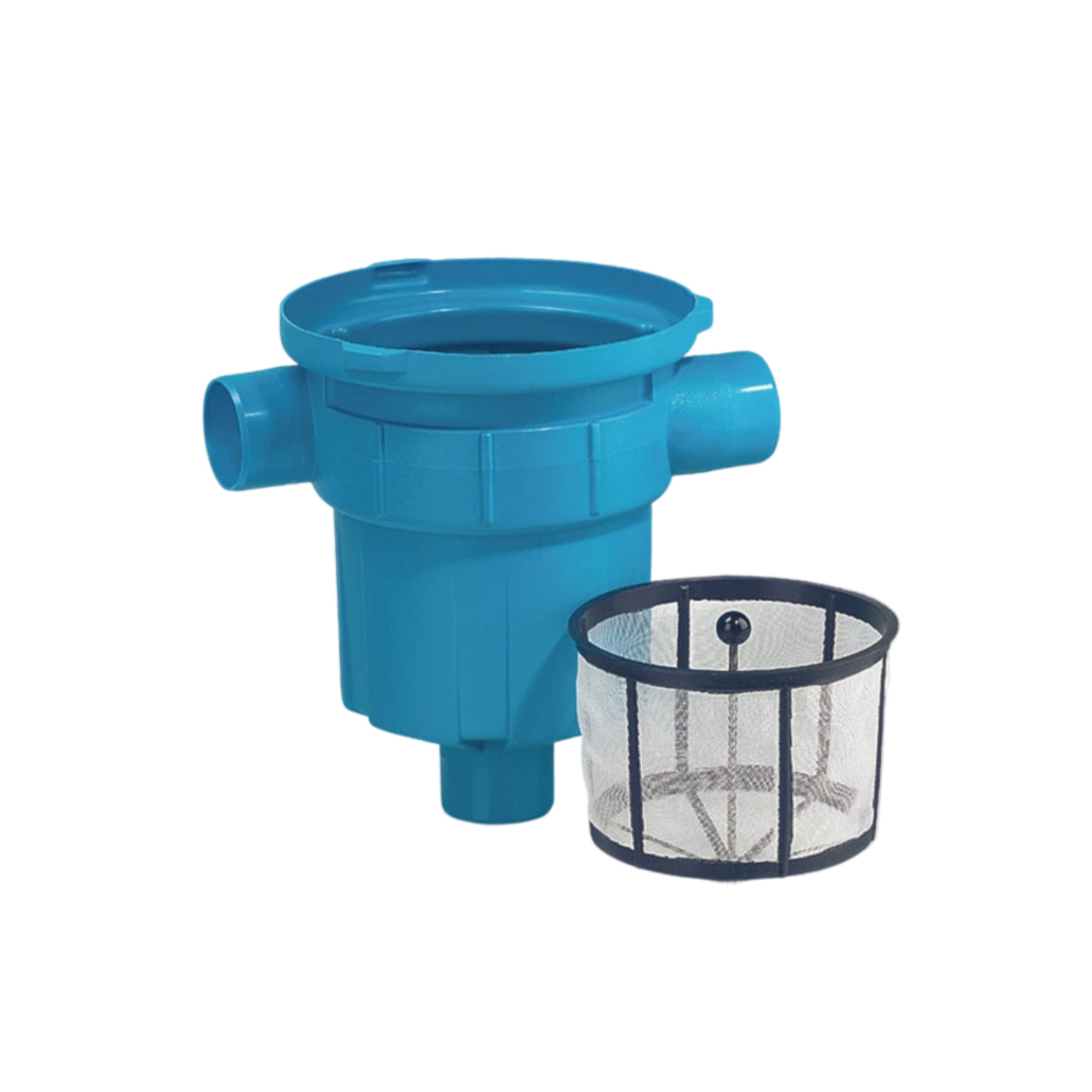

Garden Filter
£214.00 ex. VAT
£256.80 inc. VAT
Rainwater filter for roof areas up to 200m².
All connections are 110mm.
Estimated Lead time: 2-7 Working Days
Description
The selection of the correct filter or diverter will normally depend on the size of your roof area; however, for simple diversion on a guttering downpipe, the filter collector FS is ideal. On larger projects, the garden filter will cope with roof areas up to 200m² and the volume filter up to 450m².
Both units can be installed within the top of the tank; however, they are large units and general access for other components, such as the submersible pump, can prove tight. On this basis, we would normally recommend they be installed directly buried by opting for the ‘filters with extension’.
When routing clean rainwater from the filter to the underground tank, this filter should be introduced into the tank via a downpipe with a calmed inlet on the bottom. This ensures that settled debris on the bottom of the tank is not disturbed.
An overflow to the normal drainage system or soakaway should always be in place; this ensures a continual turnover of water within the tank when at high level.
Dimensions: diameter 390mm x height 515mm
Weight 2.2kg
Garden Filter Spec
- Rainwater filter for roof areas up to 200m².
- Installed within the storage tank, with debris collecting in a 1mm mesh basket filter.
- Removal handle makes lifting the filter quick and easy; filter basket available in plastic or stainless steel.
- All connections are 110mm.
- Please note: the garden filter is designed for installation within the rainwater storage tank. If it is to be installed below ground (not in the tank) then the extension tube, with lid is required
How it Works
- Rainwater flows onto the filter cartridge.
- The dirt is retained in the dirt-collecting basket. The basket has to be cleaned when necessary.
- One inlet DN 100 (110 mm OD) can also be used as an emergency overflow.
- Cleaned water flows over the bottom outlet DN 100 (110mm OD) into the rainwater tank.
- Use of a calmed inlet is recommended.
Key Features
- High-Quality Filtration: Removes dirt, debris, and other impurities to provide clean water.
- Durable Construction: Made from robust materials to withstand outdoor conditions.
- Easy to Install: Simple setup process with clear instructions included.
- Low Maintenance: Requires minimal upkeep, ensuring long-lasting performance.
- Versatile Use: Suitable for a range of garden applications, including ponds, water features, and irrigation systems.
